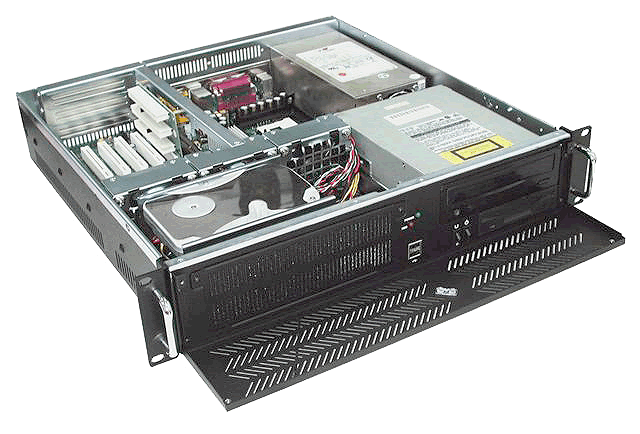

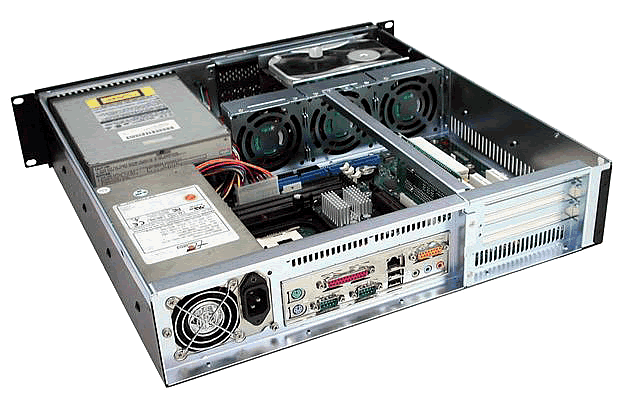

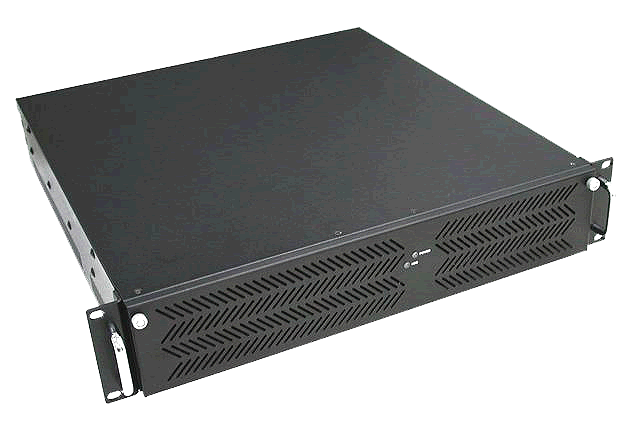

2U Intel® Based Computer System With 3rd Generation iSeries CPU
CHASSIS SPECIFICATIONS:
EIA RS-310C 19” Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Drive Bays: 1x 5.25” & 1x 3.5” & 3x 3.5” Inernal HDD
Power Supply: 350W
Cooling Units: 3 80 mm 42.5CFM Fans
Expansion Slots: Choice of 2 or 3x Horizontal ISA/PCI/AGP
Option Slots or 7 Low Profile PCI Slots
Front connectors: 2 USB Ports
Buttons: Power ON/OFF, System Reset
Front Door: Single Door with 2 Thumbscrews
Air Filter: Inside Front Panel (Washable)
Dim(W x H x D): 19” x 3.5” x 17.7”
Weight: 33 lbs
Humidity: 5% – 95% Non-condensing



MOTHERBOARD SPECIFICATIONS

CPU: Socket 1151; Supports Intel® Core™ i3/i5/i7 Processors
Chipset: Intel® H170 Express
Memory: 4x DDR4-2133 DIMM Slots, Dual Channel, non-ECC, Max Capacity up to 64GB
Slots: 1x PCI-Express 3.0 x16 Slot; 1x PCI-Express 2.0 x16 Slot (runs at x4); 2x PCI Slots; Supports AMD CrossFireX Technology
SATA: 6x SATA 6 Gb/s
Audio: Realtek ALC887 8-channel Audio CODEC; Support for S/PDIF Out
Video: Integrated Graphics Controller
LAN: Realtek Gigabit Ethernet Controller
Ports: 6x USB 2.0 Ports (2 rear, 4 via headers); 6x USB 3.0 Ports (2 rear, 4 via headers); 1x PS/2 Port; 1x VGA Port; 1x DVI Port (HDCP); 1x
HDMI Port (HDCP); 1x RJ45 LAN Port; Audio I/O Jacks

Model Numbers:

RMC-2103/8/500 Horizontal ISA/PCI/AGP Option Slots
RMC-2173/8/500 7 Low Profile Expansion Slots

Includes chassis and motherboard plus-

• Intel® Core™ i3-6100 3.7GHz CPU
• Intel® H170 Express Chipset
• 8GB DDR4-2133 Memory
• 500GB SATA3 SATA 6.0 GB/s 7200RPM Hard Drive
• DVD +/-RW Optical Drive
• SDHC Card Reader & Writer
• VGA, DVI (HDCP), and HDMI (HDCP) Video Ports
• Gigabit LAN Port
• USB 2.0, USB 3.0, and USB Type C Ports
• High Definition AUDIO CODEC
• Fast Delivery

Many other options available (CPU, Memory, Drives, Operating Systems, etc.) contact us for a quotation.

Click here for data sheet in .pdf format
